Product image slideshow Items

  • Urban Arrow Urban Arrow Family
  • Urban Arrow Urban Arrow Family

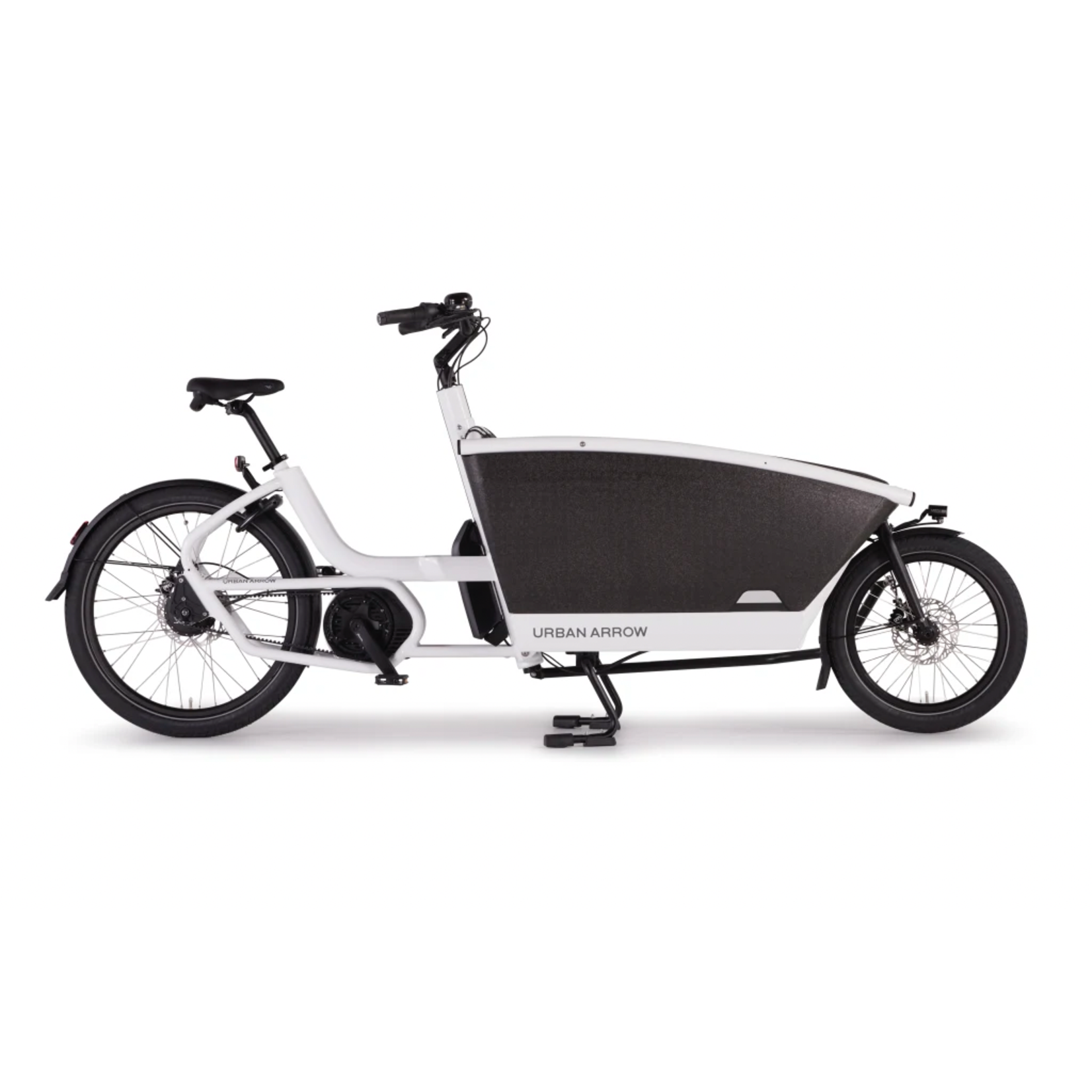

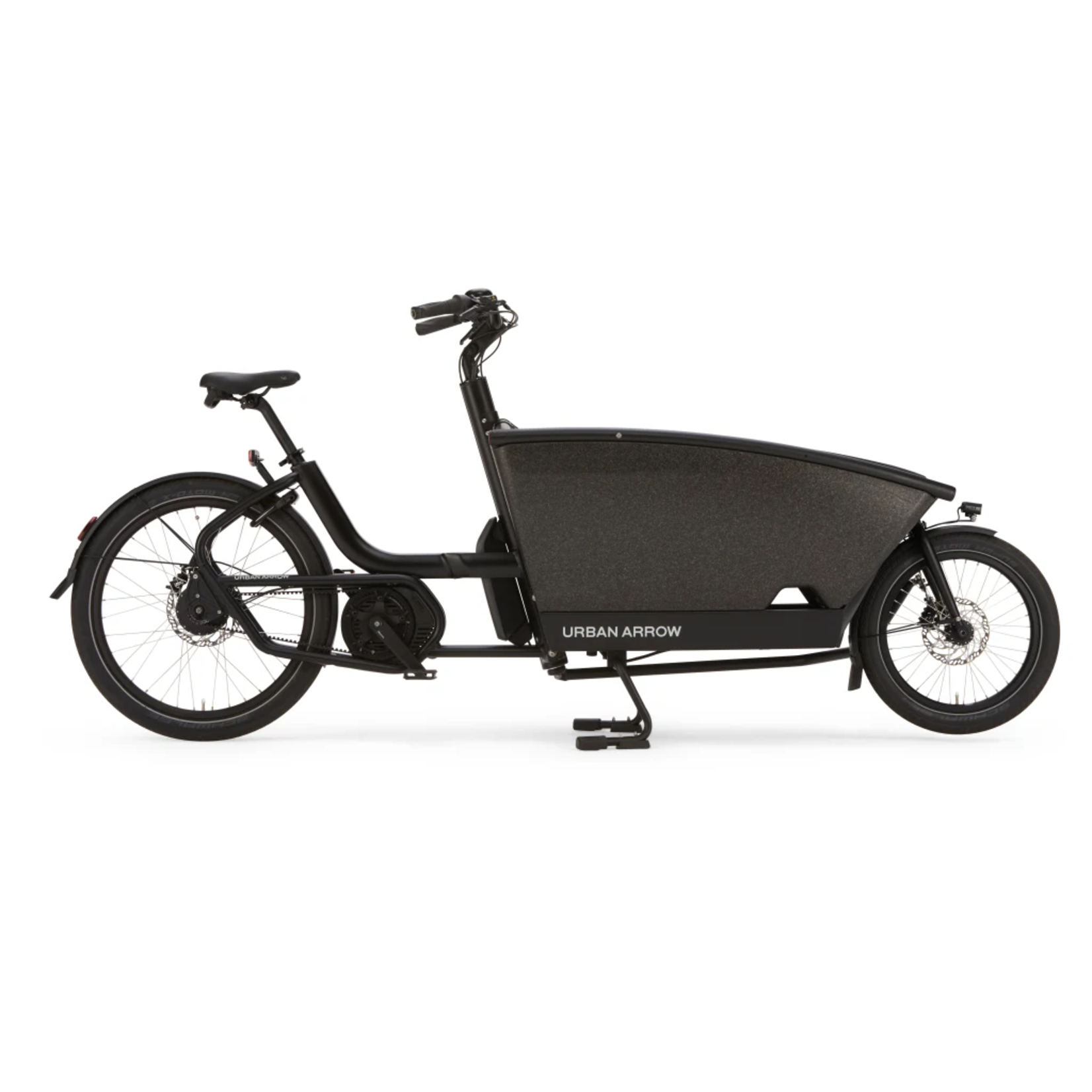

Urban Arrow Family

C$10,999.99 C$9,499.99 Excl. tax

Confidently zig-zag your way through traffic. The light frame, electric pedal assistance and stepless gear shifting guarantee a great ride. It is cycling the way you are used to, with agility, comfort and stability plus you can carry the whole family.

The rating of this product is 0 out of 5

(0)
In stock

Safety first

No compromise. The lowered children’ seating position makes for an overall lower center of gravity. This has a positive effect on the way in which the Family adheres to the road. A sturdy and adjustable three-point belt provides safety during the ride. And the expanded polypropylene (EPP) box protects your most precious cargo all around.

AVERAGE RANGE : 50km

AMOUNT OF PASSENGERS : 4pax

Supreme agility

Confidently zig-zag your way through traffic. The light frame, electric pedal assistance and stepless gear shifting guarantee a very pleasant riding experience. It is cycling the way you are used to, with agility and comfortable stability.

Say goodbye to the car

We thought of everything. We put our accessory range together by carefully listening to our riders. With the optional extra front bench, rain cover or Maxi-Cosi adapter you can tune your bike to match your family’s needs. Your bike will be so versatile that you might find yourself leaving that car in the driveway.

An investment in freedom

Meet the newest member of your family. One that takes you and your children wherever you want to go. No more worries about your busy schedule, kids needing to be places, fetching groceries or shopping trips. Zip through the city effortlessly, or enjoy a trip to the woods or the beach. One ride and you’ll be hooked!

Specification

Family | Bosch Cargo Line | 500Wh | Magura*

Frame (rear) : UA4.3, aluminium
Motor : Bosch Cargo Line Gen 4, 250W - max 85 Nm
Battery : Bosch 500Wh
Display : Bosch KIOX
Rear hub, internal gear : Enviolo Heavy Duty
Shifter : Enviolo Twist Display pro
Drive line : Gates Carbon Belt Drive CDX 120T
Rear Sproket : Gates 22T for Enviolo
Front sprocket : Gates Carbon Drive CDX 50T
Rear Brake : Magura Cme 203mm
Front brake : Magura Cme 180mm
Rear Light : Spanninga Plateo XE 6V-36V
Front light  : Lezyne Power E115
Front Fork : Rigid 110x15 thru axle tapered
Steering rod : Family Linkage Left side
Stem : 110mm 31.8mm adjustable
Handlebar : Ergotec Moon cruiser 31,8
Grips : Ergon GC10 (130/90)
Pedals : VP 836
Seatpost : UA Custom with groove
Saddle : Selle Royal Rio Plus with handle
Cranks : Miranda Delta 0 Gen 4
Rear rim : Rim Ryde Andra 29 SB Black 26” 559x29 36H 13G, axial 6 degr, radial 10 degr
Front Rim : Ryde Andra 40 Double wall 20" x 1.75; Sapim spokes (14G) Schwalbe Super Moto 62-559
Front hub : 110x15 Thru axle 4x 6804
Rear  tire : Schwalbe Super Moto 62-559
Front tire : Schwalbe Super Moto 62-406
Inner Tube Rear : Schwalbe AV 40/62-559 Air Plus (Schrader)
Inner Tube Front : Schwalbe AV 40/62-406 Air Plus (Schrader)
Rear Fender : SKS PET 65R 26” Black matte
Front fender : SKS PET 65R 20” Black matte
Floor Plate : Black
Outer Dimensions : L 260cm x W 70cm x H 110cm
Max total weight :  250Kg (bike + rider + load)
