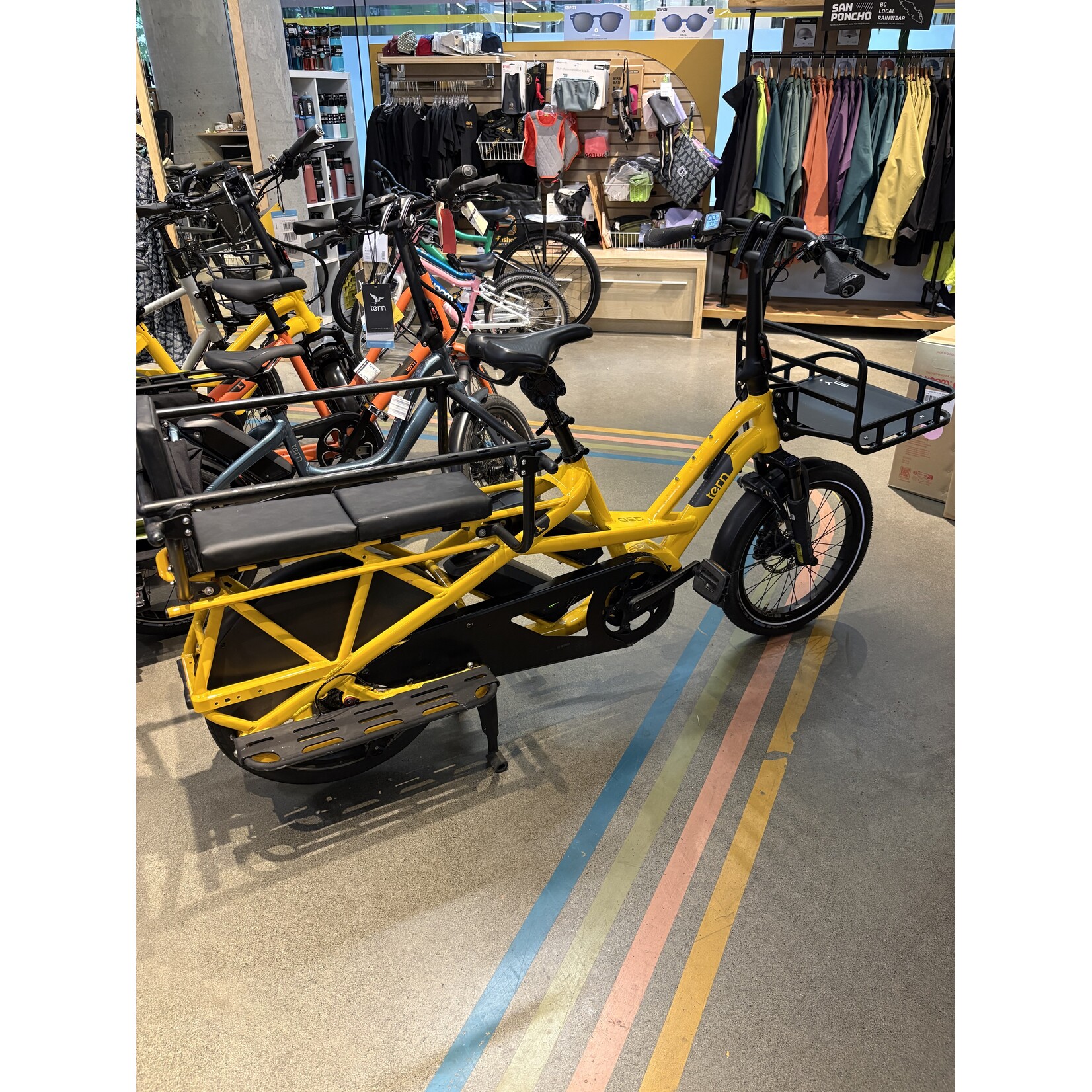

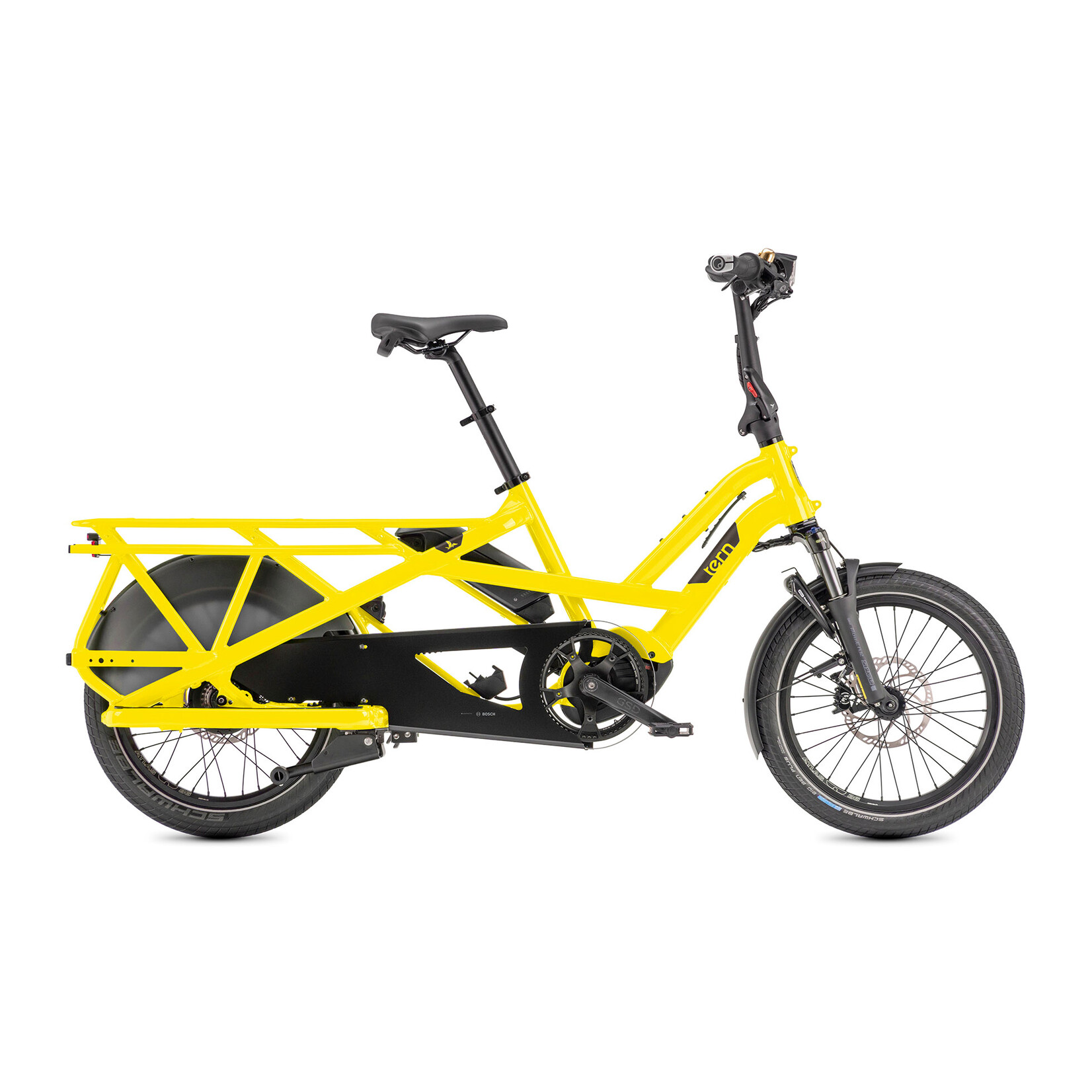

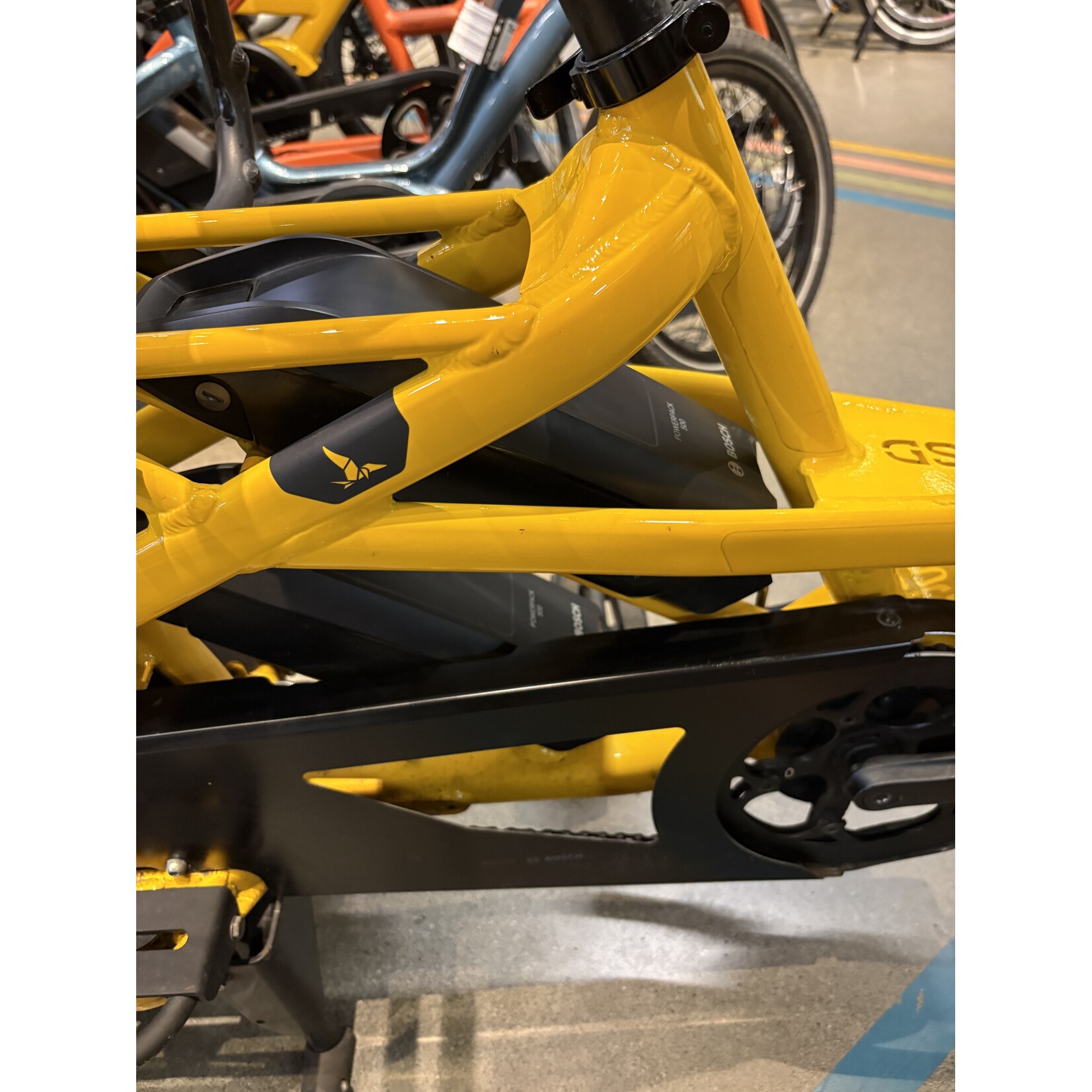

Used Tern, GSD S10 Gen 2, Dual Battery School Bus Yellow

C$7,999.99
Excl. tax

GSD S10 STILL SMALL. EVEN MORE USEFUL. Great condition. Comes with 2 500 wh batteries, Clubhouse and Clubhouse seat pads, sidekick wide decks, thud buster seat post, and transporteur front rack. Only 6743 Kms.

The rating of this product is 0 out of 5

 (0)
In stock
Add to wish list Add to wish list
swap-horizontal Add to comparison
  • 200 kg (440 lb) Maximum Gross Vehicle Weight
  • Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
  • Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (121 mi)
  • Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
  • Adjustable cockpit comfortably fits riders 150 – 195 cm (4’11” – 6’5”)
  • Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock

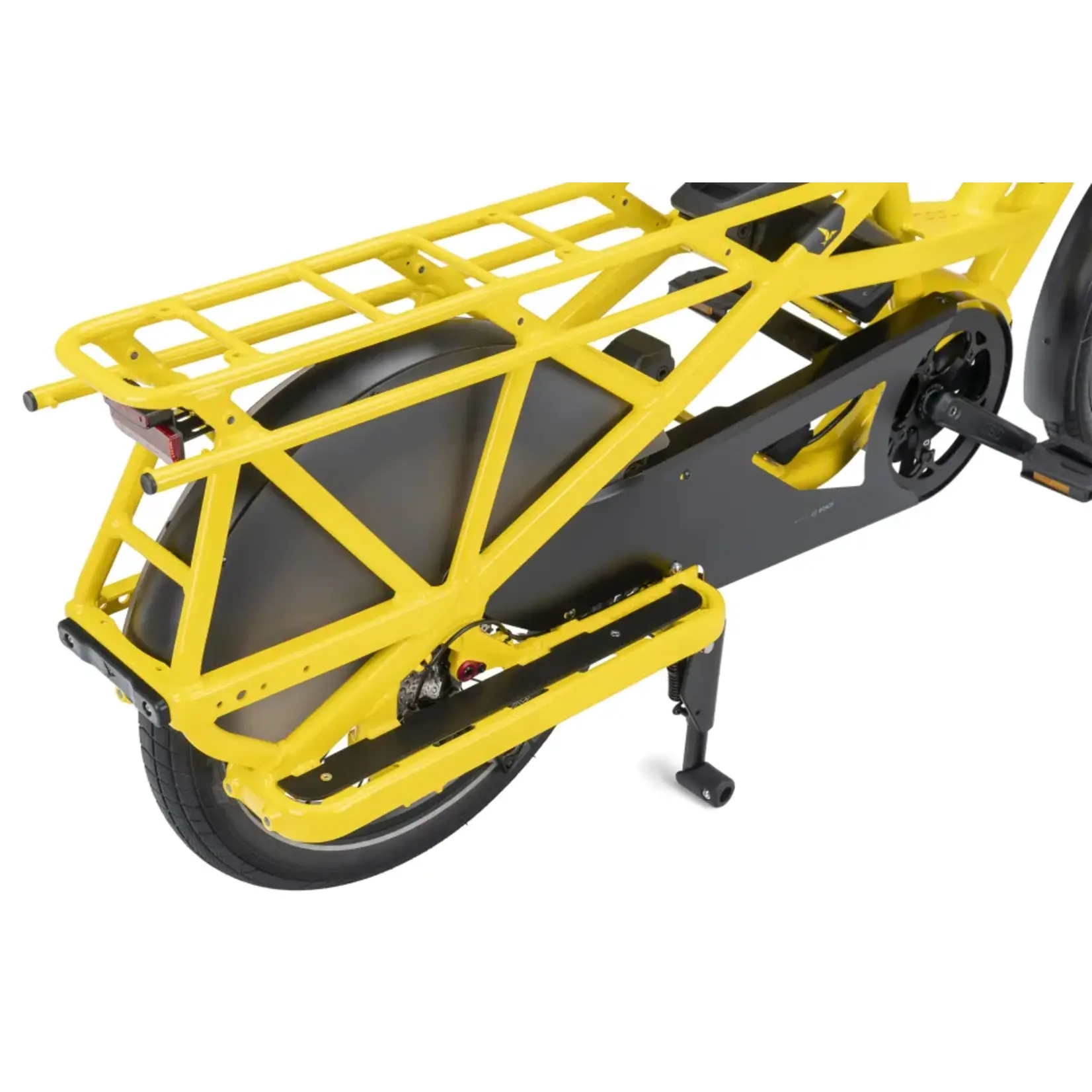

  • Heavy-duty frame-integrated rear rack and integrated lower decks
  • Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
  • Always-on RearStop™ Brake Light helps you safely signal stops
  • Integrated Abus® Wheel Lock, keyed-alike with the battery
  • Atlas Wheels with custom CNC machined hubs for extra strength and durability
  • Wide range of cargo- and passenger-carrying accessories
  • Fits two Thule® Yepp Maxi seats, no adapters needed




SPECIFICATIONS


SPEEDS:
1 x 10
WEIGHT:
33.58 kg (74 lb)
GEAR INCHES:
26" - 99" (2.08 - 7.91 m)
FRAME SIZES:
One size
FOLDING SIZE:
176 × 40.5 × 83 cm (69.3 × 15.9 × 32.7 in)
FOLDING TIME:
5 sec
DISTANCE: SEATPOST TO HANDLEBAR:
49 - 59 cm (19.3 - 23.2 in)
DISTANCE: SADDLE TO PEDAL:
69 - 105 cm (27.2 - 41.3 in)
SUGGESTED RIDER HEIGHT:
150 - 195 cm (59.1 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
200 kg (440.9 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)
FRAME
FRAME:
Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
FORK:
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
HANDLEBAR:
Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Ergon
SADDLE:
Tern GSD by Velo, with rear handle
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:
Tern Collar, 6061-AL, 2pc
BRAKES
FRONT BRAKE:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
REAR BRAKE:
Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
BRAKE LEVERS:
Magura MT5 e-stop, hydraulic, with brake sensor
WHEELS
FRONT HUB:
Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
REAR HUB:
Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
SPOKES & NIPPLES:
Stainless steel, 13G
RIMS:
Tern Atlas, ultra wide 36 mm, dual reinforced joint
TYRES:
F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
TRANSMISSION
SHIFTER:
Shimano Deore, 1 x 10 spd
REAR DERAILLEUR:
Shimano Deore Shadow+
CRANKSET:
Tern GSD custom, forged 6061-AL DH crankarm
CASSETTE/FREEWHEEL:
Shimano 11-42T, 10 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
10 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:
Urban with non-slip surface, sealed bearings
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR:
Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
BATTERY:
Bosch Dual Battery system, 400 Wh/900 Wh

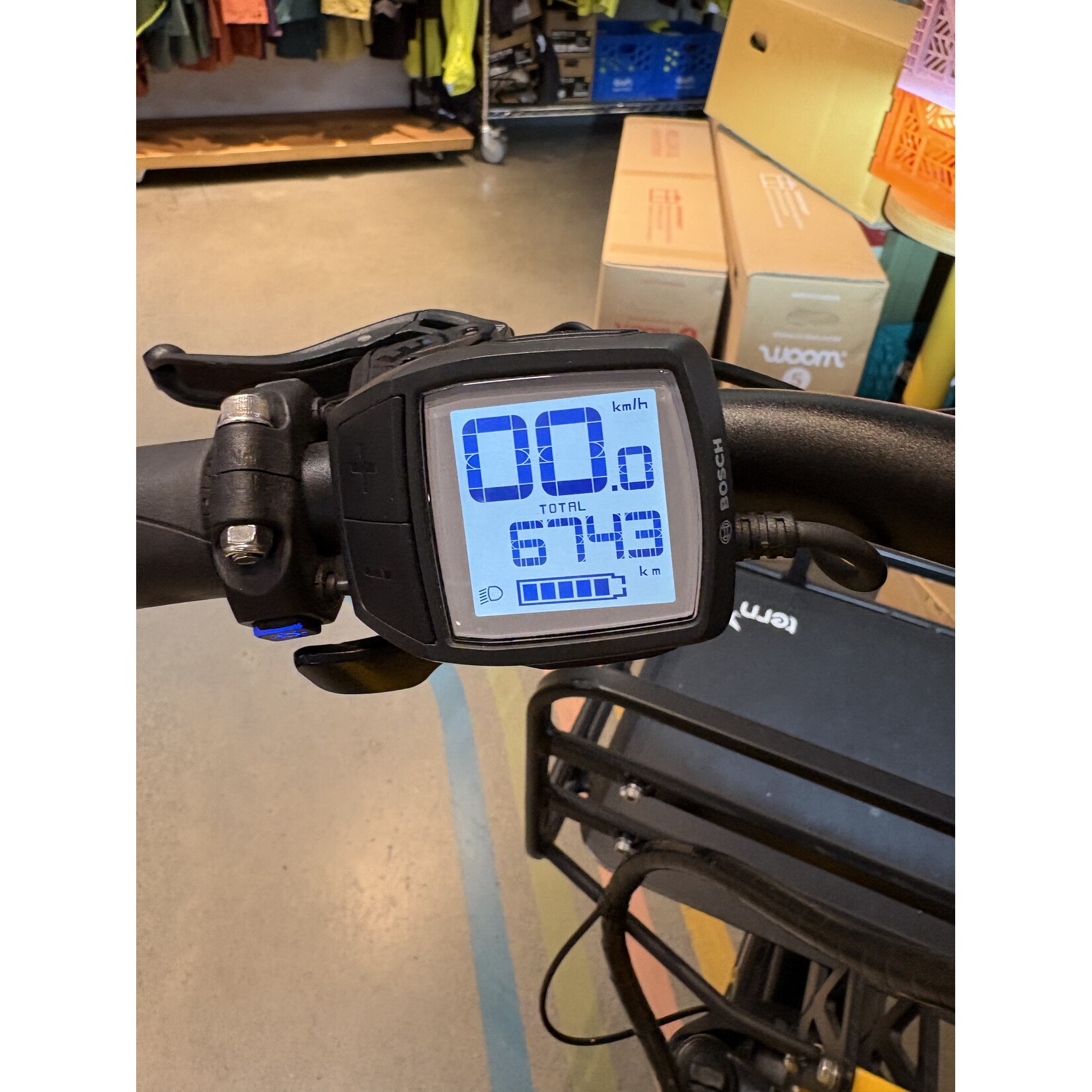

DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
RANGE:
400 Wh: 42-85 km (26-53 mi); 900 Wh: 97-195 km (60-121 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)
BELLS & WHISTLES
BELL:
Pitch Plus, brass
CHAINGUARD:
Tern Custom, full chain cover
KICKSTAND:
Atlas Lockstand, w/ remote unlock, patented technology
LUGGAGE SOCKET:
Combo Mount
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
RearStop Brake Light, Always on brake light
FENDERS:
Integrated Wheel Guard, AL6061, w/ Side Skirt
RACK:
Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
ACCESSORY:
ABUS, keyed-alike with Bosch battery
