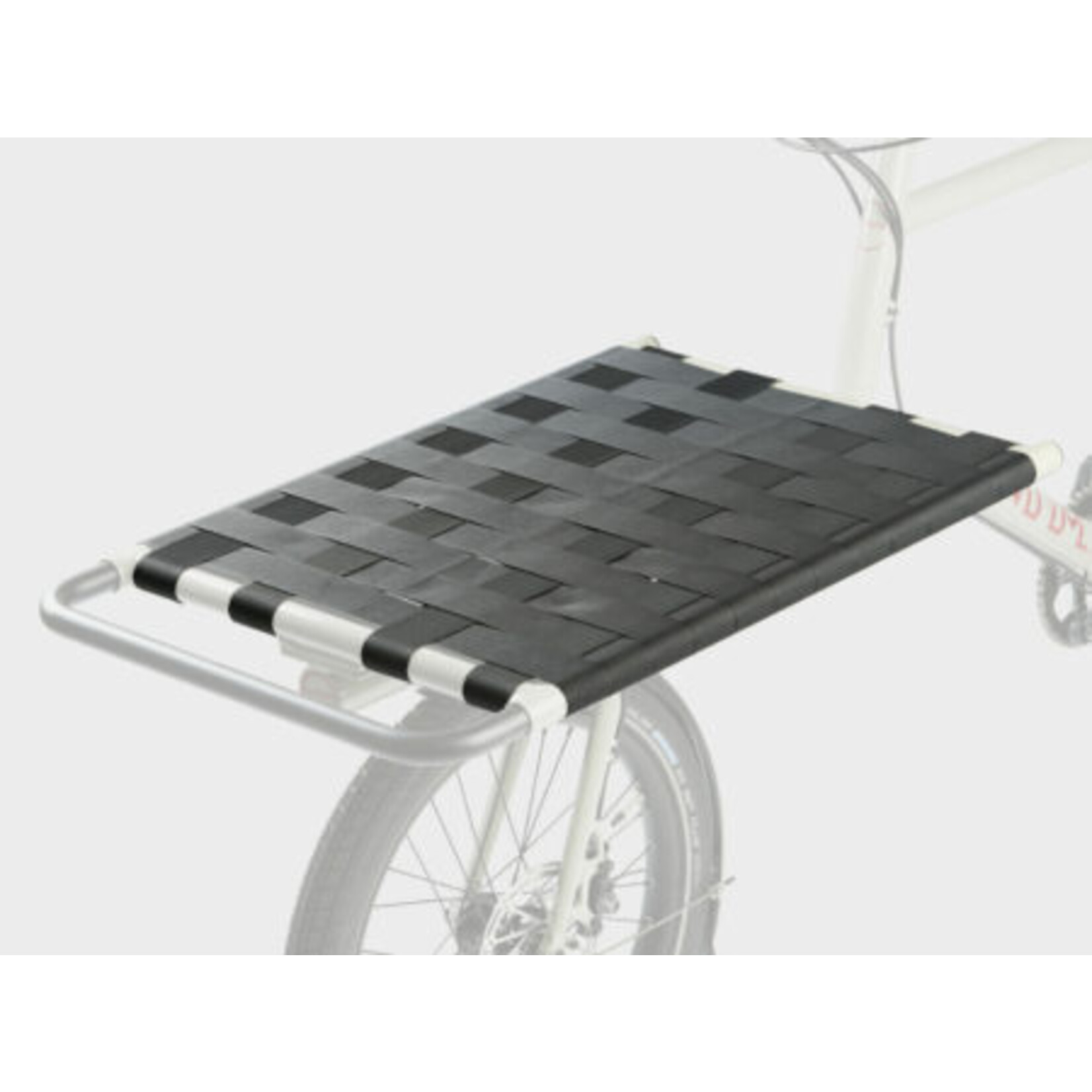

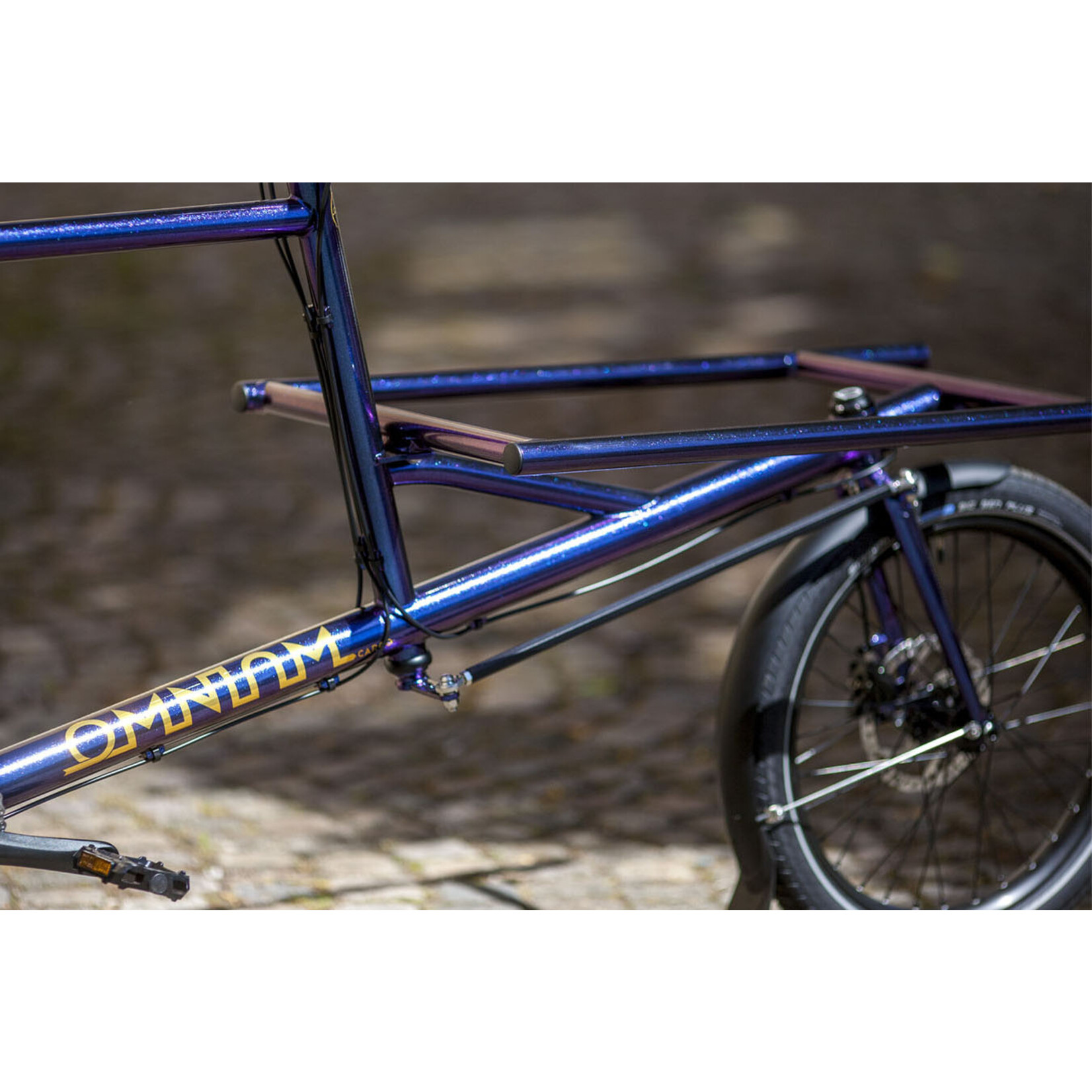

The OMNIUM Cargo is the fast, light, adjustable and manoeuvrable cargo bike. The rack area can be adapted for cargos of all kinds and for various types of child seat. Add our nylon cargo webbing to provide a super-strong surface that can hold crazy loads

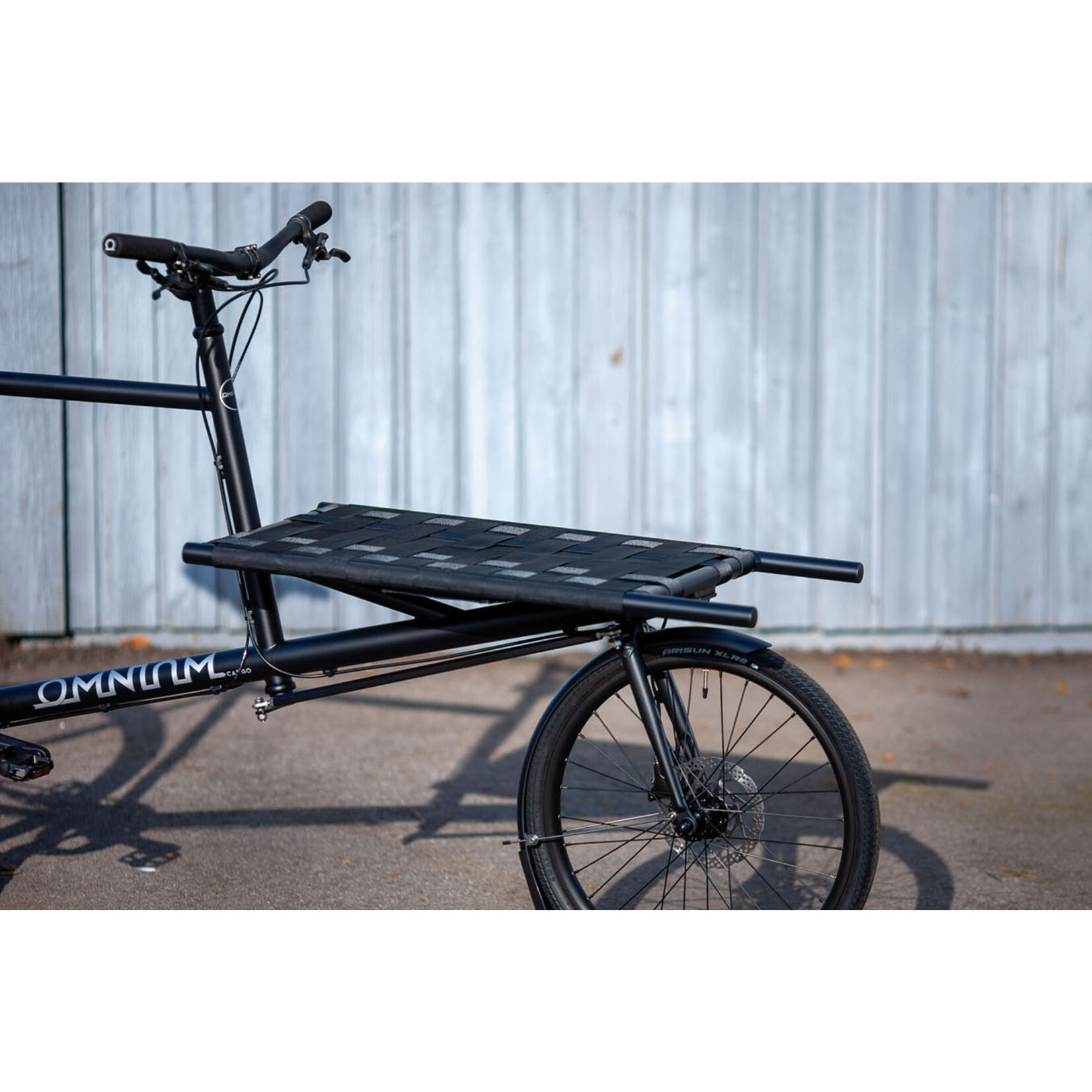

The OMNIUM Cargo is the fast, light, adjustable and manoeuvrable cargo bike. The rack area can be adapted for cargos of all kinds and for various types of child seat including our new official child safety seat. Add our nylon cargo webbing to provide a super-strong surface that can hold crazy loads all day long. We also have a cunning extender bar that slides trombone-like into the rack to give you absurd levels of cargo power.
Unlike some other cargo bikes on the market, ours feel pretty much exactly like a normal bike to ride. Not twitchy, not shaky, but agile and speedy. You’ll adapt in minutes and wonder how you survived without OMNIUM in your life.

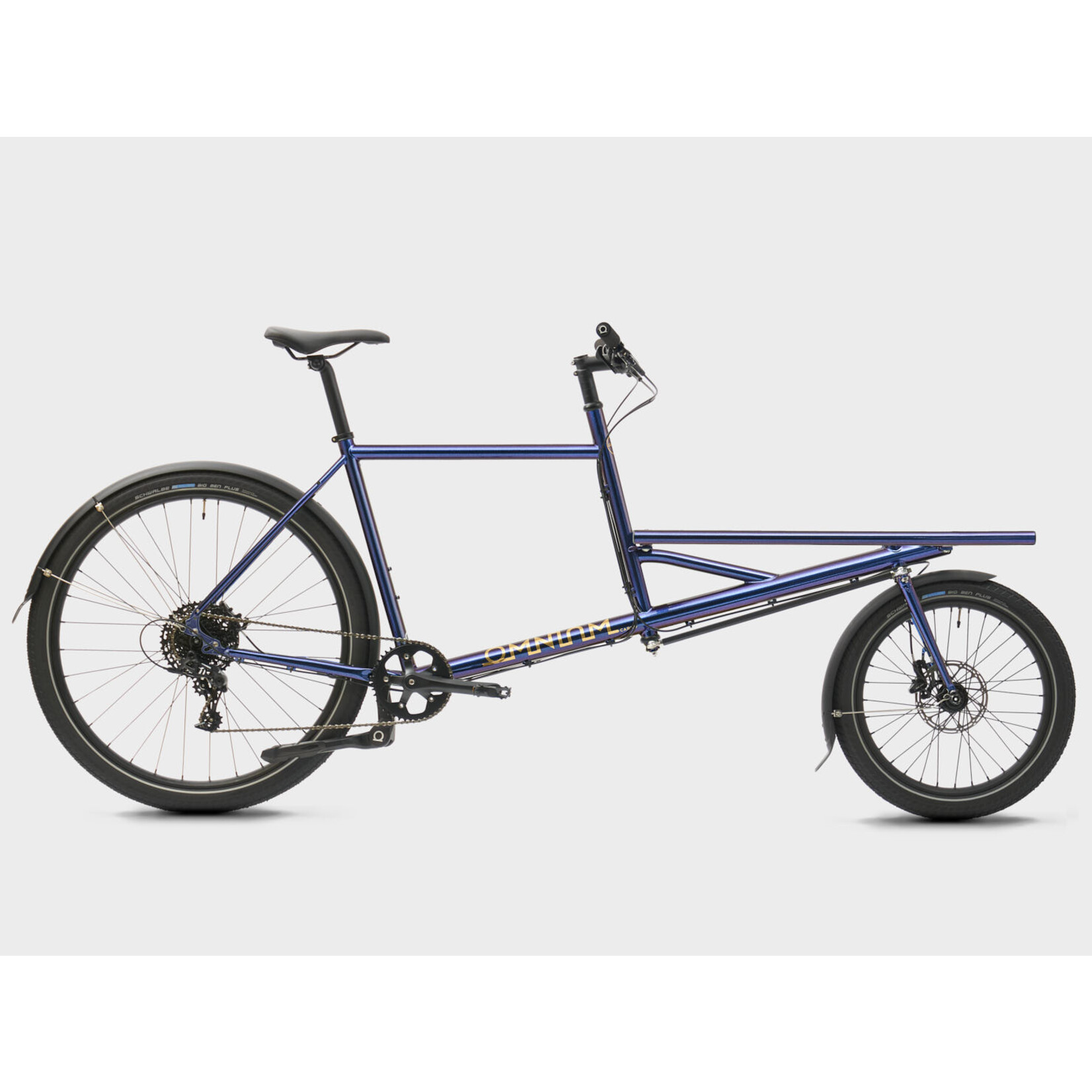

The Cargo V3 everybody! The same fast and light Omnium as you know it, now with adjustable rocker dropouts! With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.
The adjustable rocker dropouts allow you to run a variety of drive train options(sorry not simultaneously), ranging from external gears with a derailleur to internal gears and belt drive! Heck you can even run it fixed if you’re that type of nut! The swappable inserts allow you to chose between thru axle and quick release depending on your rear hub spacing and gear component choice. Maybe even carry a spare set to easily replace a broken gear hanger if need be.

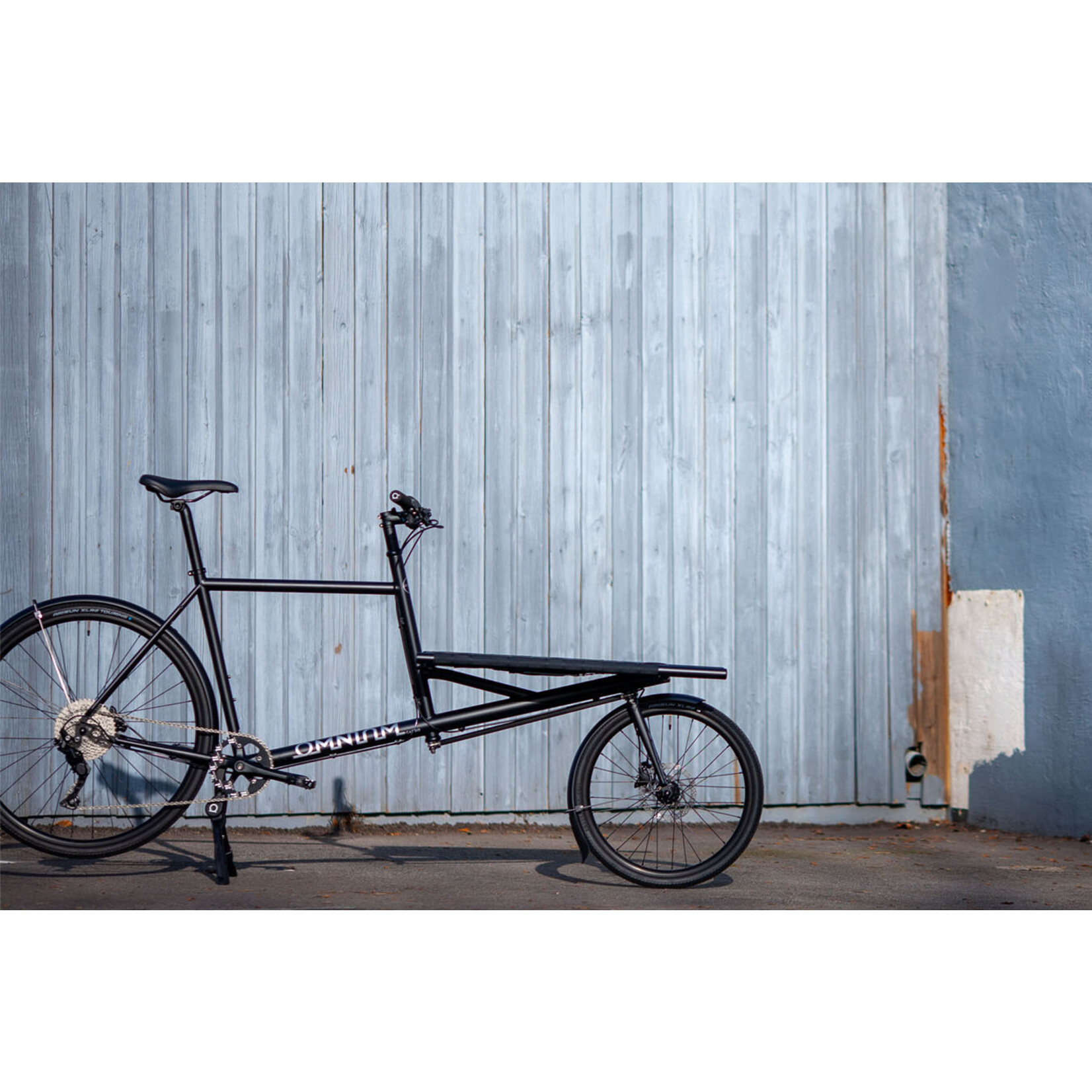

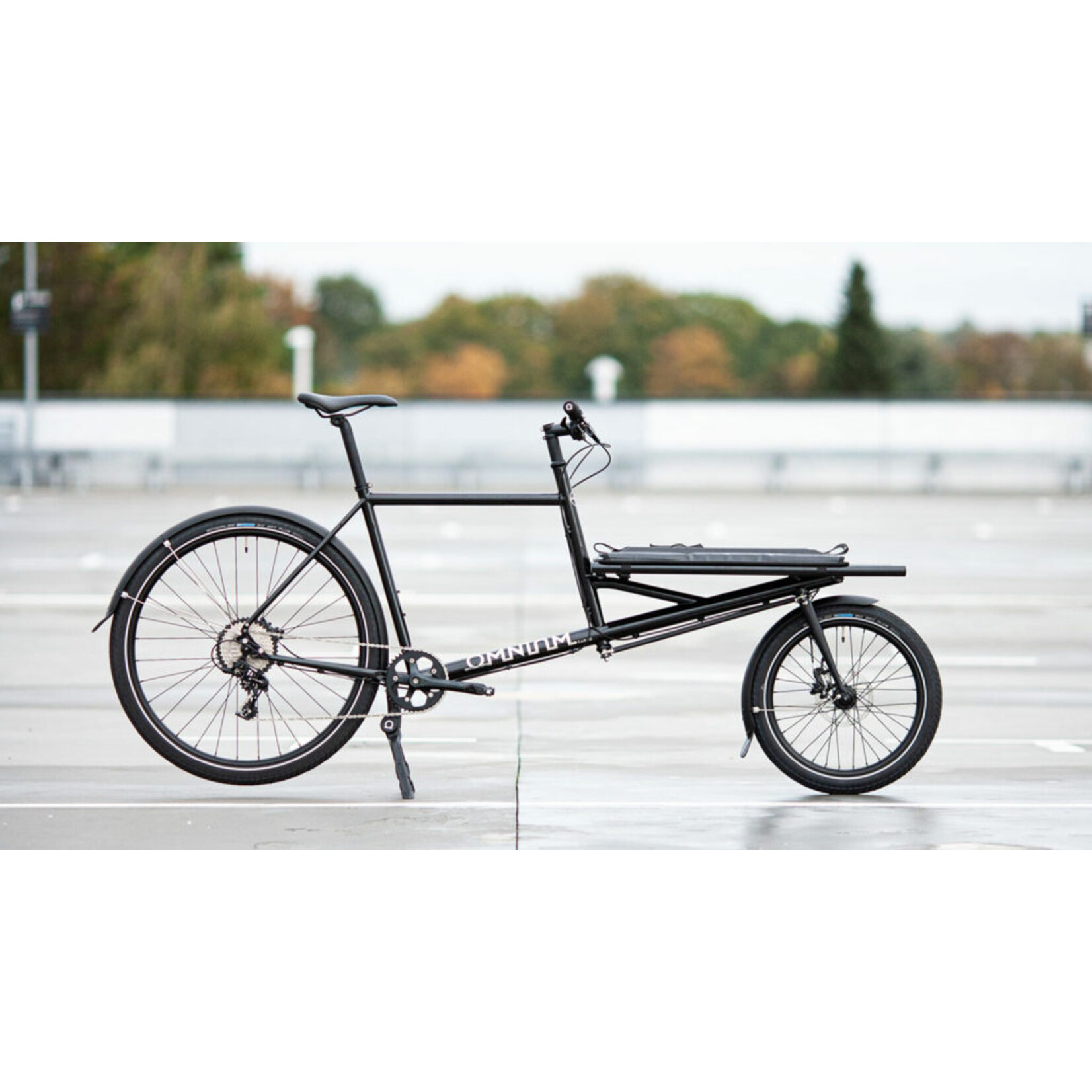

The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.
The best part is, it rides like a normal bike when unloaded, due to its clever construction and familiar geometry.

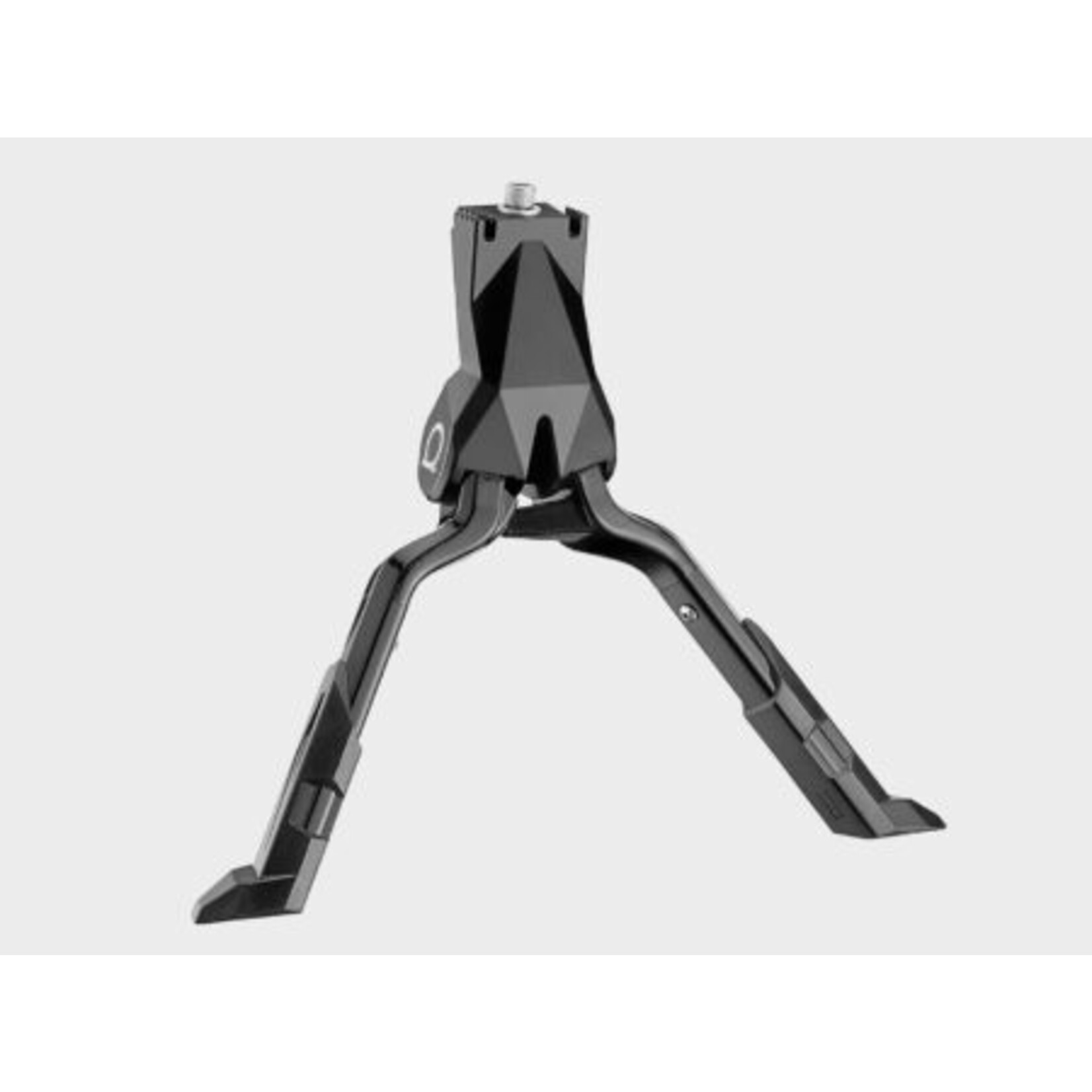

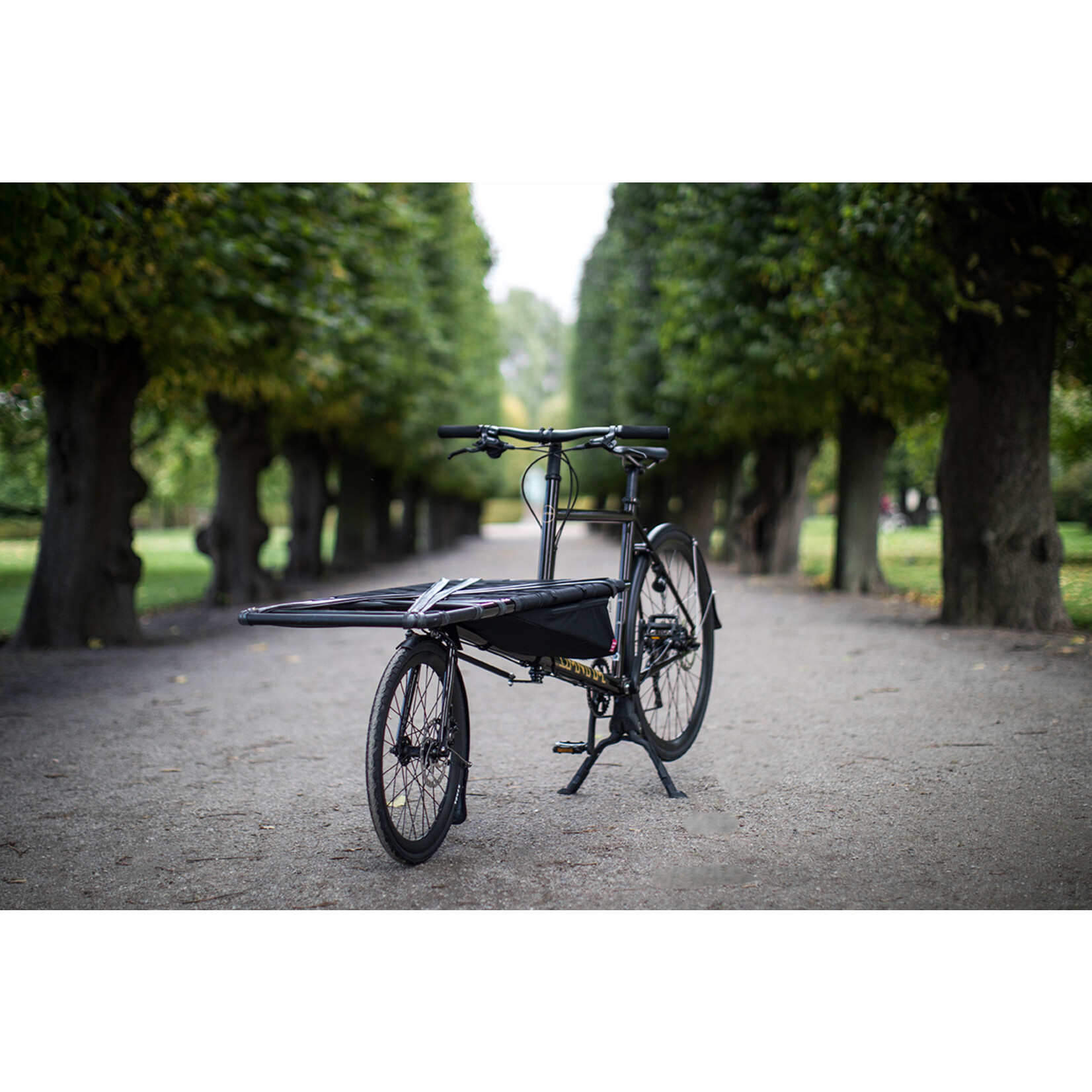

The Cargo is also the model with the longest wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.
Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.
The Cargo V3 is designed around 55mm (2.15″) tires front and rear. The list of benefits tied to bigger tires like these is long, but here’s a few we find important. High volume tires run at lower tire pressure, creating a significant layer of suspension between you and the ground. This results in far more comfort and control while riding on all surfaces, making easy work of rough roads, gravel, and cobblestones. The fast semi-slick tire tread design results in a minor rolling speed penalty, but more importantly increases grip, stability, and also reduces the risk of punctures.
The frame and fork have also been updated to take 15 x 100mm front and 12 x 142mm rear thru axles. Although thru axles were first seen on downhill mountain bikes in the late 90’s, most disc brake bikes these days use them. They make perfect sense on our cargo bikes. The axle bolts through a closed hole in the frame and fork, then through the hub, and threads directly into the dropout on the other side. Most importantly, this system increases stiffness, rigidity under braking and load, and reduces the risk of incorrect installation and disk brake rub.
The adjustable rocker dropouts are available as a free replacement when buying a new frame kit, or available separately.
Please note, all forks will be 15×100 thru axle regardless of dropout choice.
The puuuurfect spinning wheels for the Omnium Cargo V3/WiFi bike included in this build
Extra wide low profile rounded rim for the bulky tire choice (38mm outside, 32mm inside)
Magura MT30 4 piston brakes, 180mm rotors, Deore XT LinkGlide 11 speed, 11-50T Cassette
Height: 155 – 165cm — we recommend — size X-Small
Height: 165 – 175cm — we recommend — size Small
Height: 175 – 185cm — we recommend — size Medium
Height: 185 – 195cm — we recommend — size Large
Height: 195 – 205cm — we recommend — size X-Large
Cargo WiFi | XS (49.5) | S (52) | M (54.5) | L (57) | XL (60) |
STL – seat tube length (c-t) | 495 mm | 520 mm | 545 mm | 570 mm | 600 mm |
TTL – top tube length (c-c / actual) | 505 mm | 520 mm | 545 mm | 570 mm | 600 mm |
Stack | 532 mm | 557 mm | 581 mm | 605 mm | 634 mm |
Reach | 349 mm | 357 mm | 375 mm | 393 mm | 415 mm |
SO – standover height | 745 mm | 769 mm | 793 mm | 817 mm | 846 mm |
BBH – bottom bracket height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
BBD – bottom bracket drop | 81 mm | 81 mm | 81 mm | 81 mm | 81 mm |
STA – seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
HTA1 – head tube angle rear | 74.5° | 74.5° | 75° | 75° | 75.5° |
HTA2 – head tube angle front | 74.5° | 74.5° | 75° | 75° | 75.5° |
WB – wheelbase | 1578 mm | 1590 mm | 1611 mm | 1632 mm | 1657 mm |
A-C – axle to crown | 298 mm | 298 mm | 298 mm | 298 mm | 298 mm |
R – rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
T – trail | 26 mm | 26 mm | 24 mm | 24 mm | 21 mm |
CSL – chainstay length | 462 mm | 462 mm | 462 mm | 462 mm | 462 mm |
FL – full bike length | 2208 mm | 2220 mm | 2241 mm | 2262 mm | 2286 mm |
